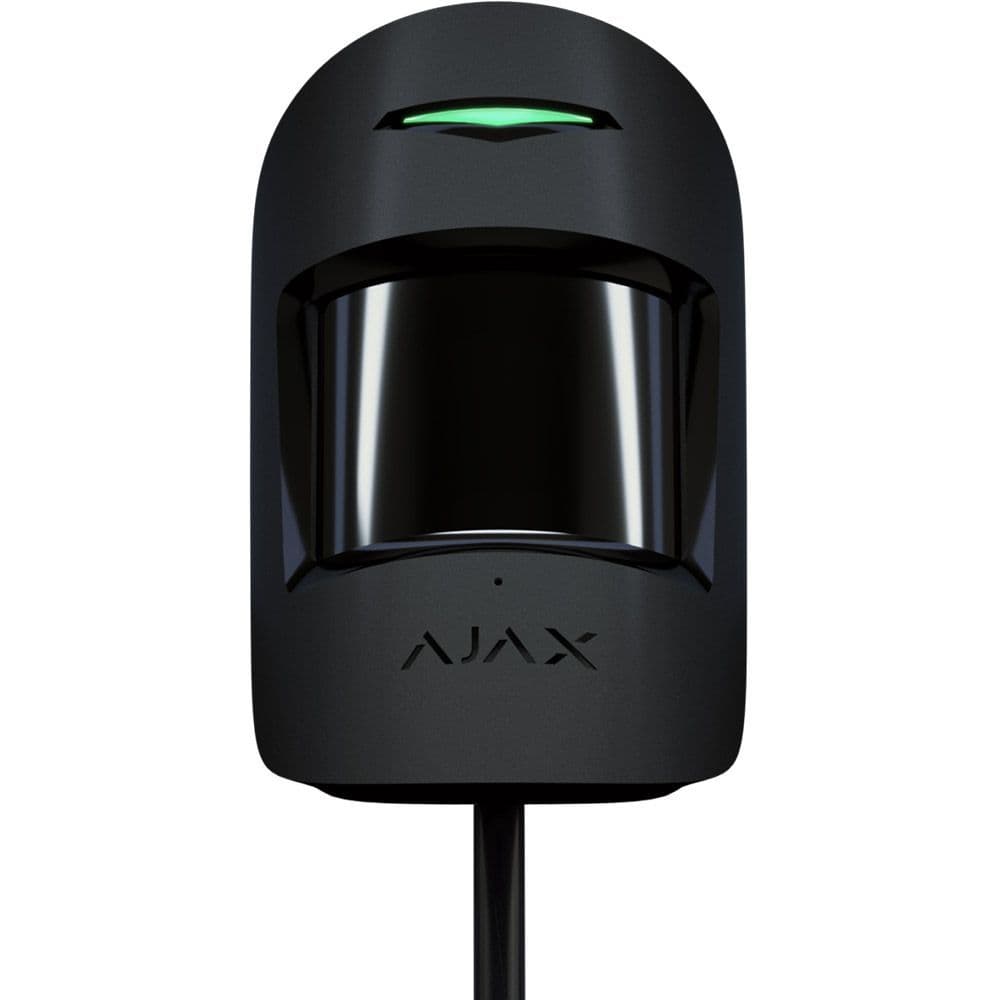

Ajax CombiProtect Fibra

Not yet reviewed
Product Code: AJXF-CP-46699
Information

This is the device of the Fibra wired product line. To purchase, install and administer such devices, you need to be an accredited partner, undergo training and gain access.

Wired indoor motion and glass break detector.

Features

  • Two-factor glass break verification algorithm by low and high frequencies
  • Glass break detection distance
  • 180° Glass break detection angle
  • Pet immunity up to 20 kg / up to 50 cm
  • Fibra line connection up to 2,000 m
  • Motion detection angle - vertical: 88.5°, horizontal: 80°
  • Software filter against false alarms
  • Data-rich notifications
  • Remote control and setup
  • Power consumption is up to 46 mW
  • Temperature compensation - effective detection in heat and cold
  • Hassle-free installation: QR-code, SmartBracket, App

Technical Specifications

COMPATIBILITY

  • Compatible hub models: Hub Hybrid (2G), Hub Hybrid (4G)

COMMUNICATION

  • Fibra communication technology: Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features:
  •    Two-way communication.
  •    Advanced anti-sabotage.
  •    Instant notifications.
  •    Remote configuration via the app.
  • Line connection: 4-core cable
  • Fibra line length: up to 2,000 meters. When using twisted pair U/UTP cat.5.
  • Encrypted communication

MOTION DETECTION

  • Sensing element: 1 × PIR sensor
  • Motion detection distance: up to 12 meters. When installed at 2.4 meters height.
  • Motion detection angles: horizontal - 88.5°, vertical - 80°
  • Motion detection speed: from 0.3 to 2.0 m/s. The direction of the detector lens should be perpendicular to the intended path of entry into the facility.
  • Sensitivity: 3 levels. Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
  • Pet immunity: up to 20 kg, up to 50 cm height
  • False alarm prevention: SmartDetect. Software algorithm.
  • Temperature compensation: Effective motion detection within -10°C to +40°C range.

RECOMMENDATIONS

  • It is recommended to install the detector at 2.4 meter height.
  • Device is designed for indoor use only.

GLASS BREAK DETECTION

  • Sensing element: 1 × electret microphone
  • Glass break detection distance: up to 9 meters
  • Glass break detection angles: horizontal - 180°, vertical - N/A
  • Sensitivity: 3 levels. Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
  • False alarm prevention: DualTone. Two-factor glass break verification software algorithm: by low and high frequencies.

ANTI-SABOTAGE PROTECTION

  • Tampering alarm: Alerts of attempts to detach the detector from the surface or remove the mounting panel.
  • Protection against forgery: Device authentication

POWER SUPPLY

  • Fibra line power supply: 5−30 V⎓, up to 26 mW The detector is powered by the control panel.

ENCLOSURE

  • Dimensions: 110 × 65 × 50 mm
  • Weight: 92 g
  • Operating temperature range: from -10 °C to +40 °C
  • Operating humidity: up to 75%
  • Protection class: IP50

COMPLETE SET

  • CombiProtect Fibra
  • SmartBracket mounting panel
  • Installation kit
  • Quick Start Guide
Specifications
  • Brand:
    Ajax Fibra
  • Product Code:
    AJXF-CP-46699
  • Weight:
    0.092kg
