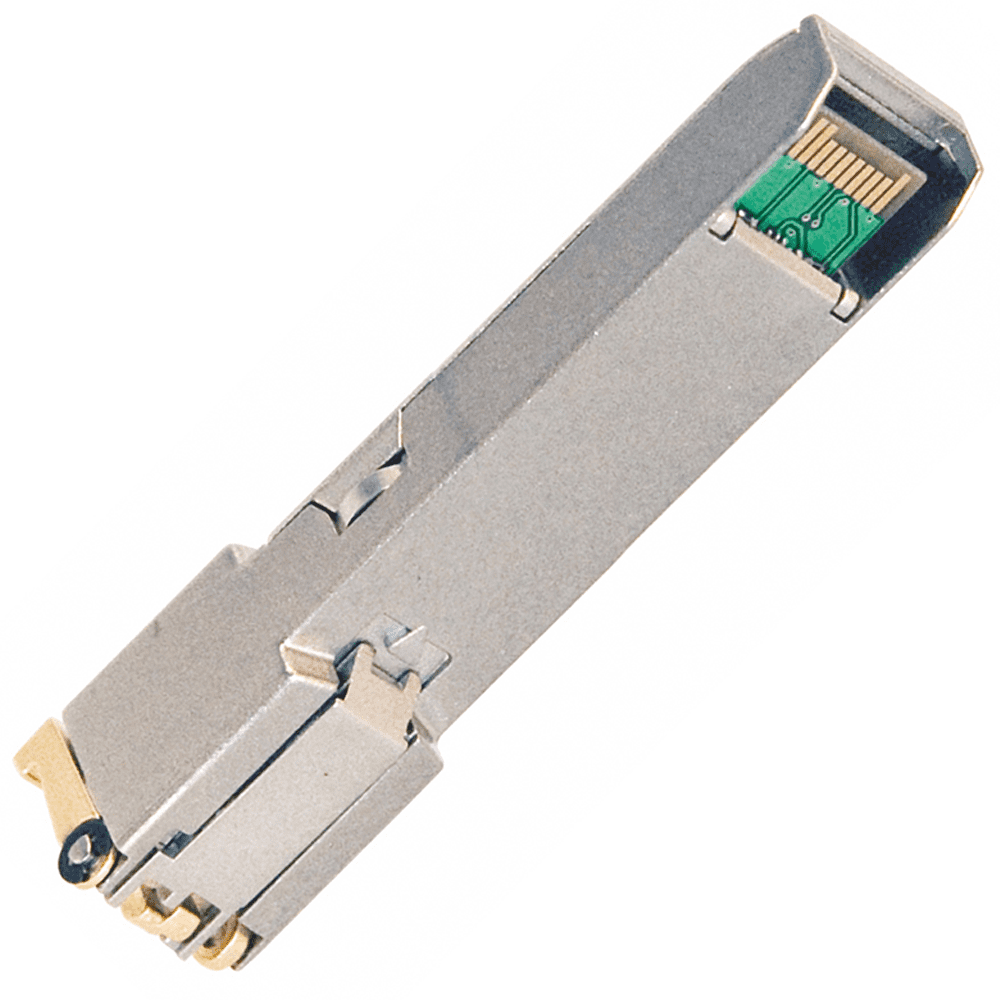

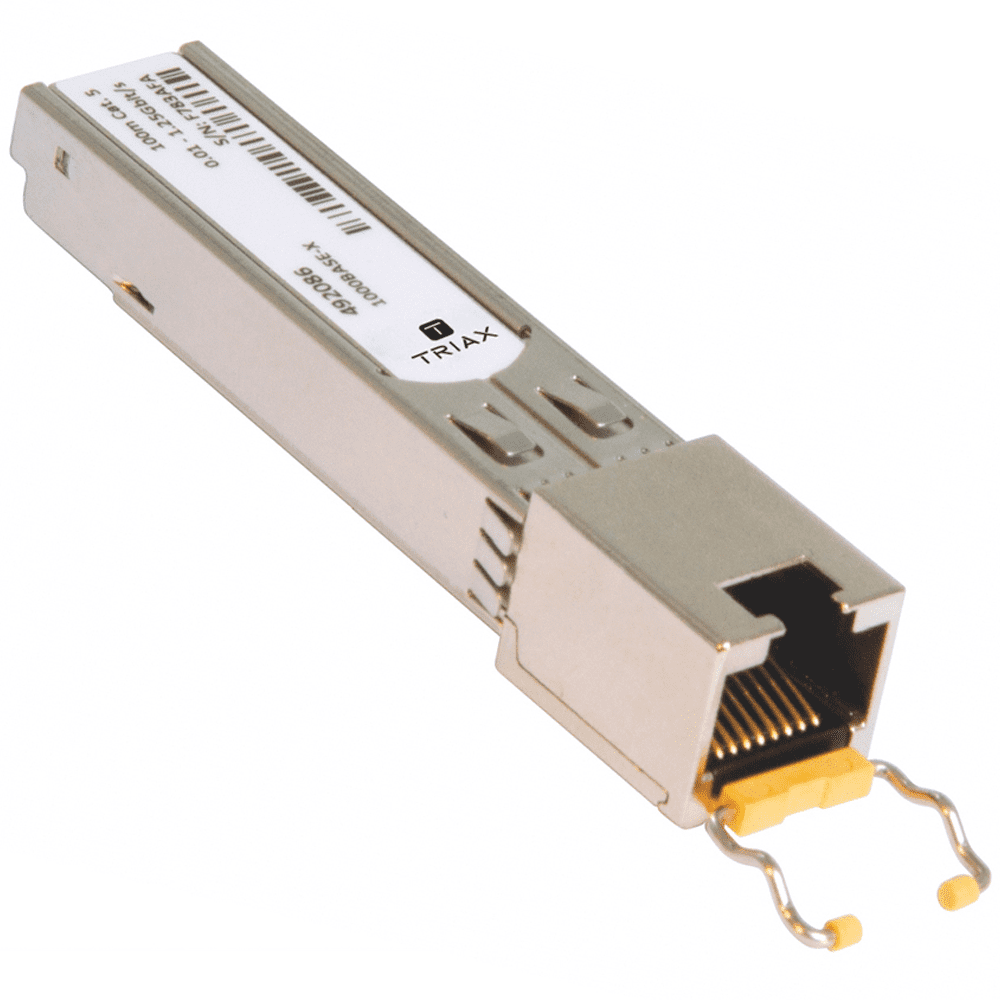

Triax IP Output SFP RG45 Connector

Not yet reviewed
Product Code: 492086
Information

IP output SFP (Small Form - Factor Pluggable). It is possible to create your own bouquets of services/TV programs, available in the TDX Pool, and put them together in an IP data stream. You can use Cat 5 cable or fibre to transmit your IP stream.

Features

  • Support 1000BASE-T operation in host systems with SGMII interface
  • Up to 1.25Gbps bi-direction data links
  • Hot-pluggable SFP footprint
  • Fully metallic enclosure for low EMI
  • Low power dissipation (1.05 W typical)
  • Compact RJ-45 connector assembly
  • 100m transmission over unshielded
  • twisted pair (UTP) Category 5 Cable
  • Access to physical layer IC via
  • 2-wire serial bus

Applications

  • LAN 1000Base-T
  • 1.25 Gigabit Ethernet over Cat 5 cable
  • Switch to Switch interface
  • Router/Server interface

Technical Specifications

CHARACTERISTICS

  • Transport stream payload: max. 720

OPERATIONAL

  • Protocols: UDP with RTP optional
  • Data rate: 1000
  • Reaching area: 100 m

MECHANICAL

  • Packing QTY: 1
  • Packaging Height: 0.013 m
  • Packaging Width: 0.015 m
  • Packaging Depth: 0.070 m
  • Net Weight: 0.022 kg
  • Tara Weight: 0.008 kg
  • Total Weight: 0.030 kg
  • Remarks: Copper SFP (RJ45) Gigabit Ethernet over Cat 5 cable
Specifications
  • Brand:
    Triax
  • Product Code:
    492086
Product Code: 492086
