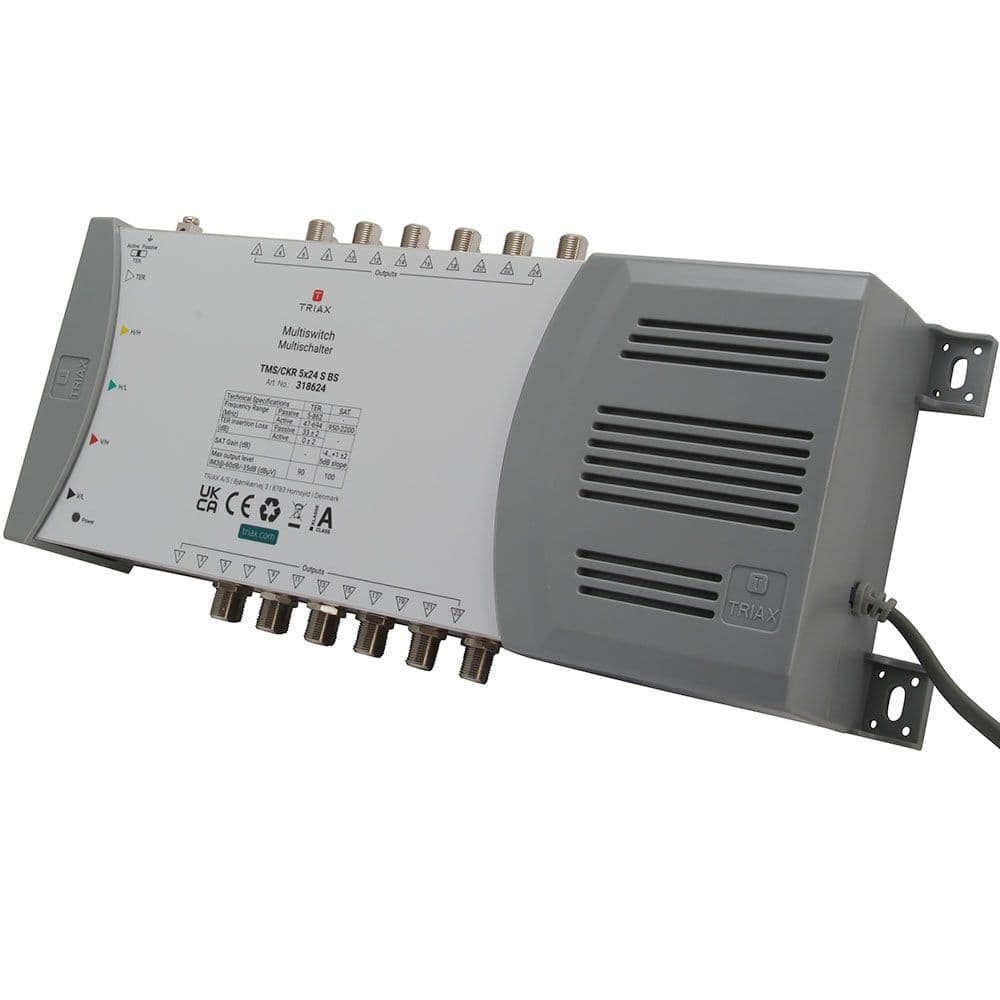

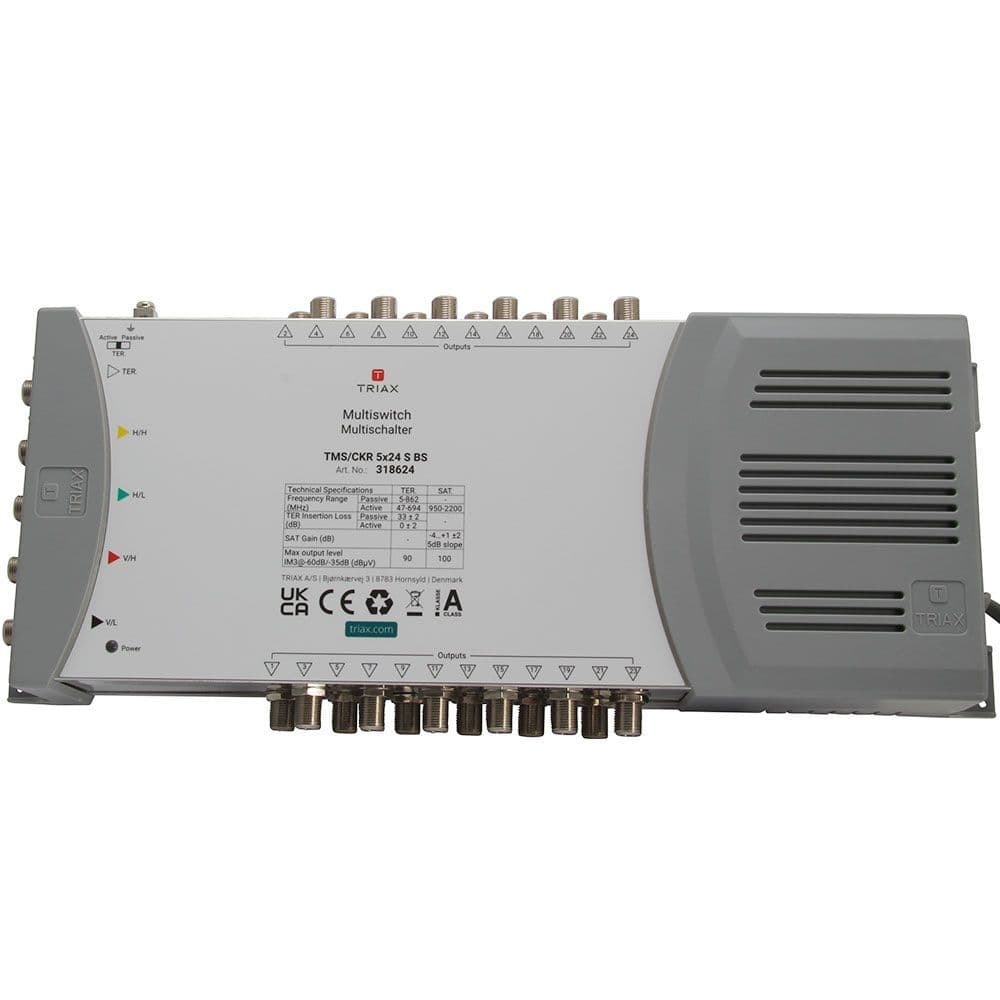

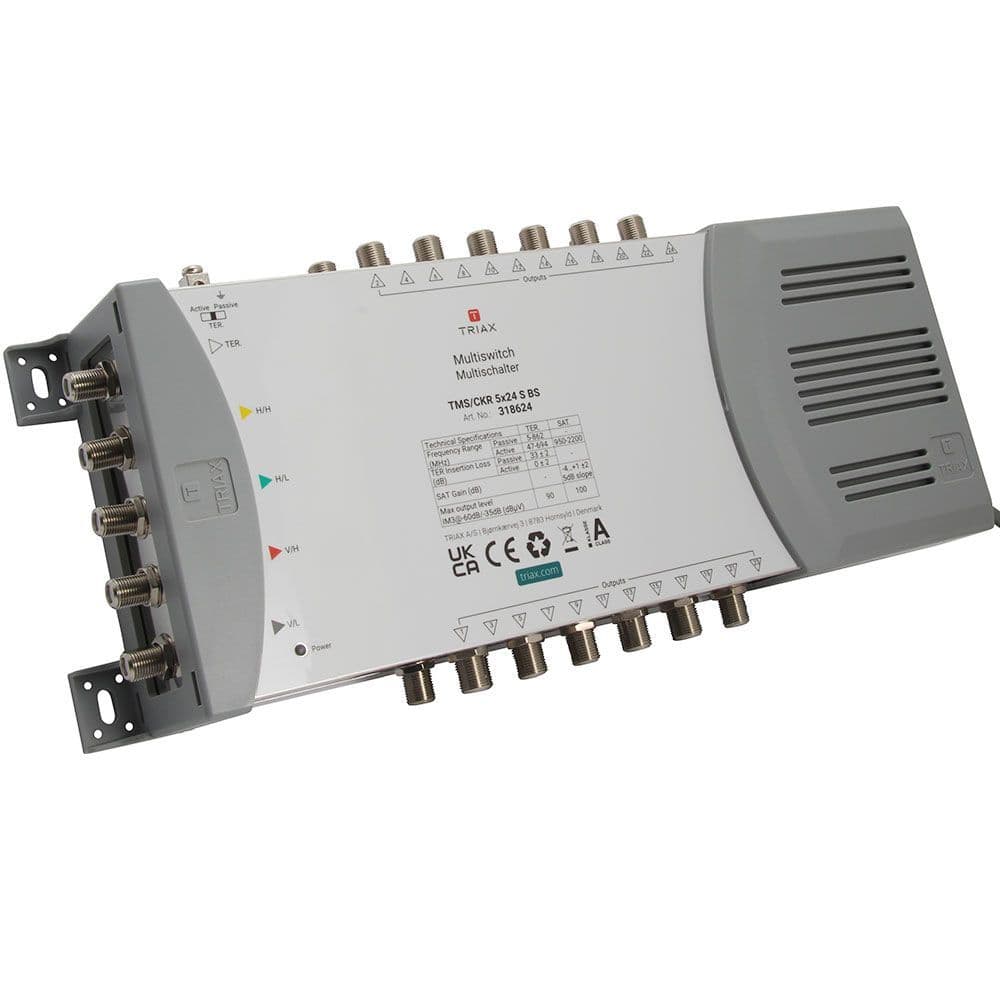

Standalone multiswitch for 1 Satellite position with 5 inputs and 24 outputs, suitable for distributing satellite and terrestrial signals in small and medium sized systems.
Dependability guaranteed: a 6-year warranty is our guarantee that TRIAX’s core values of reliability and innovation are the foundation of our new multiswitches.
The TMS/CKR 5x24 S BS offers excellent performance and flexibility, with a compact design for installations even in confined spaces.
Excellent performance
- Low insertion loss
- High isolation
- Low power consumption
- RED compliant
- ESD Protection
- Flexibility
All the functionality you need in a simplified, streamlined range
- Easier to select the right product
- Fewer products to stock
- Quad and Quattro LNB compatible
- Active/Passive Terrestrial Switch
- Convenience
Designed with installer convenience in mind
- Equidistant F-connectors on all multiswitches
- Colour-coded input labels
- LED power indicator
- Earth Bars
- UK Power Supply
Technical Specifications
ELECTRICAL
CONNECTORS
- Connector Type: F-female
- Number of inputs: 5
- Subscriber outputs: 24

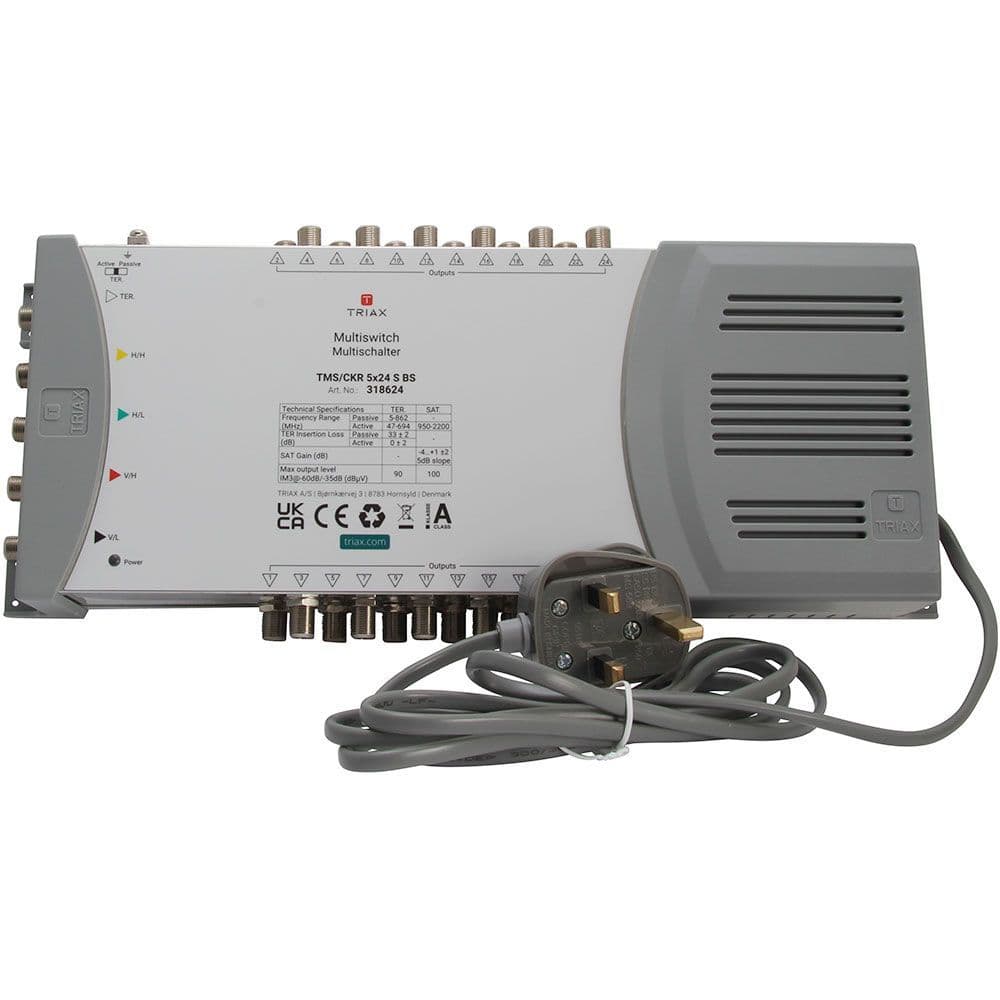

- Power connector: UK main plug
- Colorcoding @IF/TER inputs: VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER
CHARACTERISTICS
- LNB type: Quad/Quattro
- Max. input level - SAT (IMD3 - 35dB): 99 dBµV
- Max. input level - TER (IMD3 - 60dB): 90 dBµV
- Max. output level SAT @ -35 dB IMD3: 100 dBµV
- Max. output level TER @ -60dB IMD3: 90 dBµV
- LNB current max.: 1000 mA
- Switch commands: DiSEqC 1.0/2.0, 13/18V, 0/22kHz
FREQUENCY RANGE
- Frequency range TER: Active: 47…694 / Passive: 5...862 MHz
- Frequency range SAT: 950…2200 MHz
GAIN
- Gain - SAT (with 5 dB slope): -4…+1 ± 2 dB
- Gain - TER: 0 ± 2 dB
LOSS
ISOLATION
- Isolation SAT to TER: 30 dB
- Isolation cross polarisation H/V: 30 dB
- Isolation out-out SAT: 30 dB
- Isolation out-out TER: 25 dB
RETURN LOSS
- Return loss SAT inputs: >10 dB
- Return loss TER inputs: >10 dB
- Return loss TAP outputs: >10 dB
OPERATIONAL
- AC Supply voltage: 180…264 VAC
- ESD protection: 4KV inputs & sub outputs
- Power Consumption (typ.): 3.5W max. TER active 2W max. TER passive W
- Max. current pass per F-connector: 2000 mA
- Max. current to each output (supplied by set top box): <50 mA
- Control LEDs: Green LED (Power)
- Temperature - operating: -20…+55 °C
MECHANICAL
- Main material: Steel housing
- Dimensions product (H x D x W): 140 x 65 330 mm
- Packing QTY: 1
- Product Height: 330 mm
- Product Length: 140 mm
- Product Width: 140 mm
- Product Depth: 65 mm
- Packaging Height: 0.070 m
- Packaging Width: 0.380 m
- Packaging Depth: 0.150 m
- Packaging Volume: 0.000 m3
- Net Weight: 1.080 kg
- Tara Weight: 0.167 kg
- Total Weight: 1.247 kg
