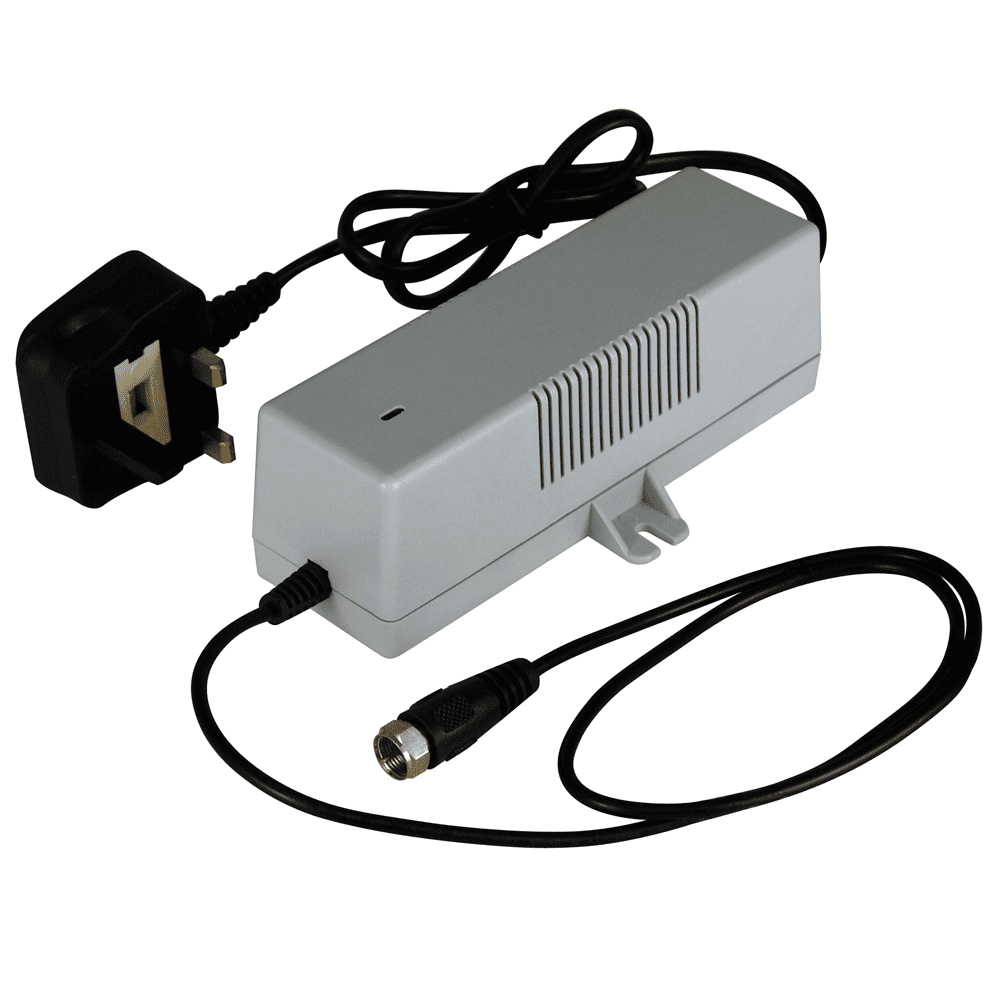

Vision 18V 2.5A DC Power Supply Unit (121556)

Not yet reviewed
Product Code: EV5-034

Vision EV5 and V9 IRS can be powered using the V5-034 via the H,Lo and H,Hi trunk cables, by DC connection into the auxiliary DC socket of a multiswitch or by DC injection into the trunk cables (Use V5-033 DC Injector). This flexibility means that power can be inserted at almost any point in the system even where there is no mains power near the headend amplifiers.


  • 18v 2.0A DC inserter / DC Line Power Tap
  • Switchable DC direction with LED indication
  • Ideal for inserting DC power into V5 / V9 and other line powered IRS/MATV Systems
  • DC block when switched to single direction
  • DC pass on RF line when in dual direction mode
  • Ideal for powering separate DC zones

Technical Specifications

  • Output Voltage: 18V DC
  • Output Current: 2.5A 45VA
  • Mains Voltage: 180 – 264V AC 50Hz
  • Mains Current: 230mA / 55W at 240V
  • Connector: 600mm DC lead with F Connector
  • Mains Lead: 600mm mains lead with UK mains plug with 3.0A fuse
  • IP Rating: Indoor use only
  • Operating Temperature: -20ºC to +50ºC
  • Size inc fixing lugs: 143 x 75 x 48mm
  • Weight: 0.3 kg
  • Brand:
  • Product Code:
Product Code: EV5-034
