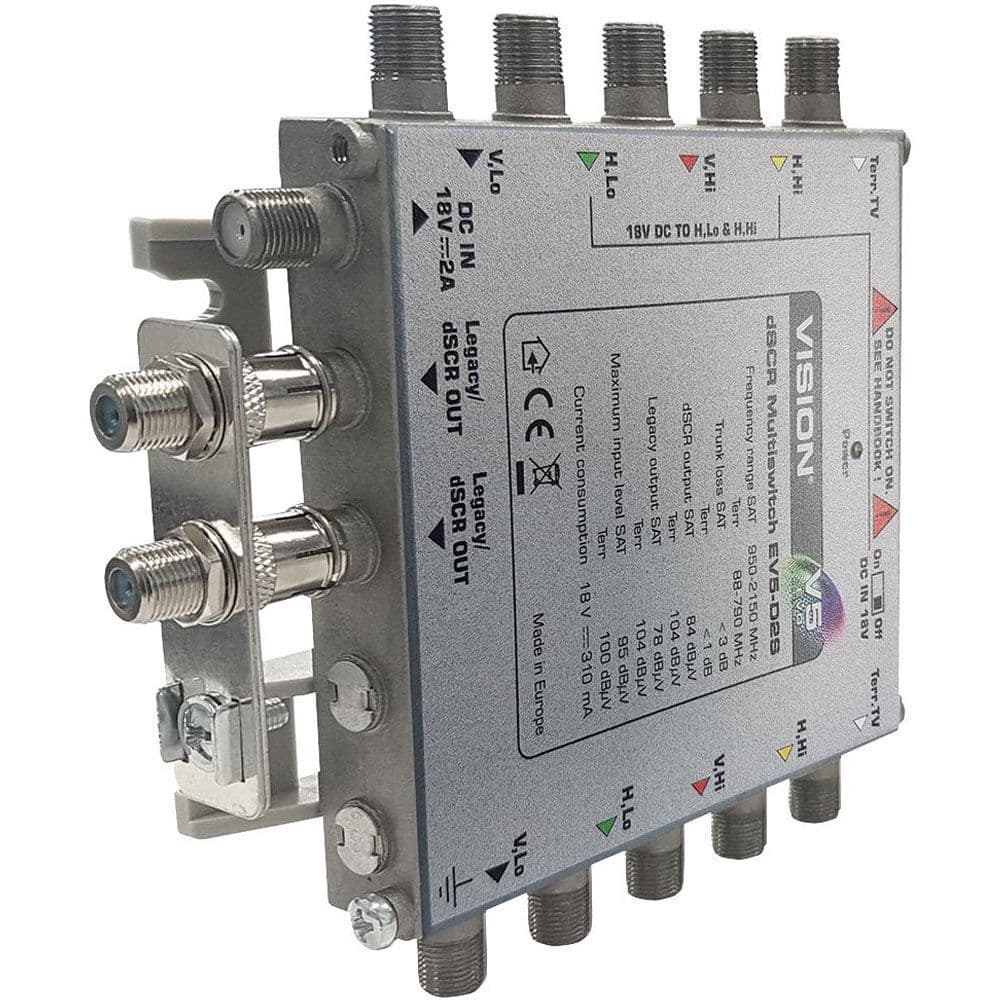

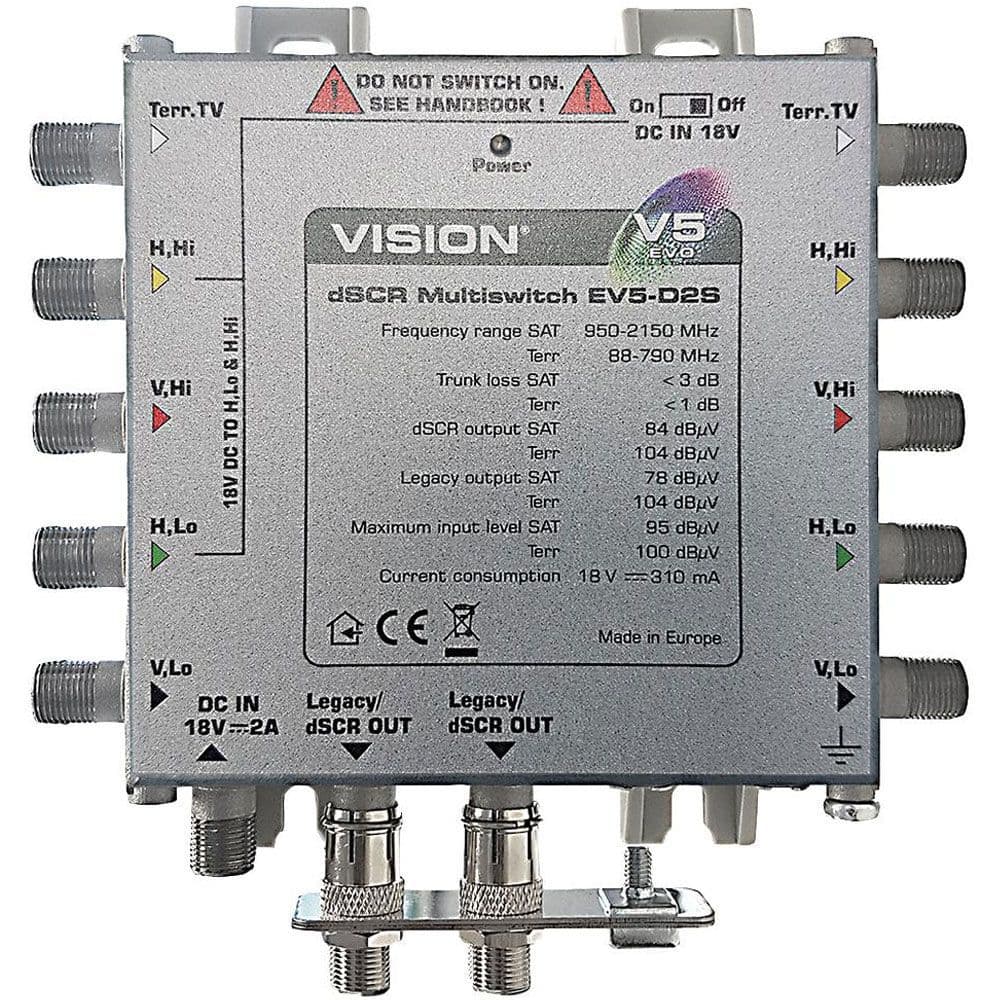

Vision 5x2 dSCR Multiswitch (122372)

Not yet reviewed
Product Code: EV5-D2S
Information

5 x 2 dSCR (Sky Q) Switch - Add to IRS or Stand Alone. Line Powered.

Vision IRS switches have been the UK market leader for more than a decade, proving to be exceptionally reliable and versatile. Often copied but never equalled, the features are extensive, the power consumption low, noise low and interconnectivity completely flexible. Availed with Sky Q and Sky+ commutability, even the oldest installations can support our new Sky Q adapters, keeping your investment future proof. These products include factory fitted earth bars, stepped high gain outputs for multiple drop cable lengths up to 50m, variable gain control, power from anywhere - even no landlord supply installations. Colour coded, screened and filtered for interference rejection, these products represent excellent value for money. Free system design service included.

Features

  • 5 input – 5 output cascaded trunk line
  • Ideal for insertion into any existing 5-wire IRS trunk
  • Control according to EN 50494/EN 50607/ SKY UK
  • Suitable for Sky Q™, SCR Unicable or Legacy mode
  • Automatic Gain Control of satellite signal level on all outputs
  • Active Terrestrial
  • Very low through loss
  • Pre-mounted Earth bars
  • 4 x DC modes for convenient DC powering options
    1. Receiver Subscriber Power
    2. Auxiliary DC input
    3. DC power to the trunk
    4. DC power from the trunk

Technical Specifications

  • Frequency Range:
    • SAT: 950MHz - 2150MHz
    • TERR: 5 - 790MHz
  • Number of Cascade Inputs/Outputs: 4 SAT + 1 Terr.
  • Number of dSCR / Legacy outputs: 2
  • Number of SAT user bands: 16 per output
  • Input level SAT (AGC): 60 - 95dBµV
  • Input level Terr (max) (IMD-35): 104dBµV (98dBµV de-rated)
  • Output at dSCR mode with DTT: SAT 84dBµV (AGC) Terr 103dBµV (97dBµV de-rated*) max
  • Output Legacy mode: SAT 78dBµV Terr 103dBµV (97dBµV de-rated*) max
  • Gain SAT / Terr: SAT AGC Terr 4dB
  • Trunk Loss SAT / Terr: <-1.5dB / +2dB
  • SAT IF / SAT IF Isolation: >30dB
  • SAT IF Input - Output: >30dB
  • SAT IF / Terr: >25dB
  • DC Consumption from DC Input or H Lines: 18V 290mA
  • DC Consumption Terr TV amplifier via H lines: 15 - 18V 40mA
  • DC Consumption from STB in legacy mode: 13V 220mA : 18V 190mA
  • DC Consumption from STB in dSCR mode: 14V 320mA for 16 User Bands
  • DC Consumption legacy + dSCR mode: 18V 260mA for 16 User Bands
  • Max DC Pass into the trunk: 18V 2.0A
  • DC Power Supply: Use EV5-034 121556
  • Operating Temperature: -200C to +500C
  • Dimension inc connectors / Weight: 155 (L) x 134 (W) x 30mm (D) 475g

* Note: De-rated figures are the maximum input and output levels for a full compliment of level DTT Muxes.

Specifications
  • Brand:
    Vision
  • Product Code:
    EV5-D2S
  • Weight:
    0.475kg
Product Code: EV5-D2S
