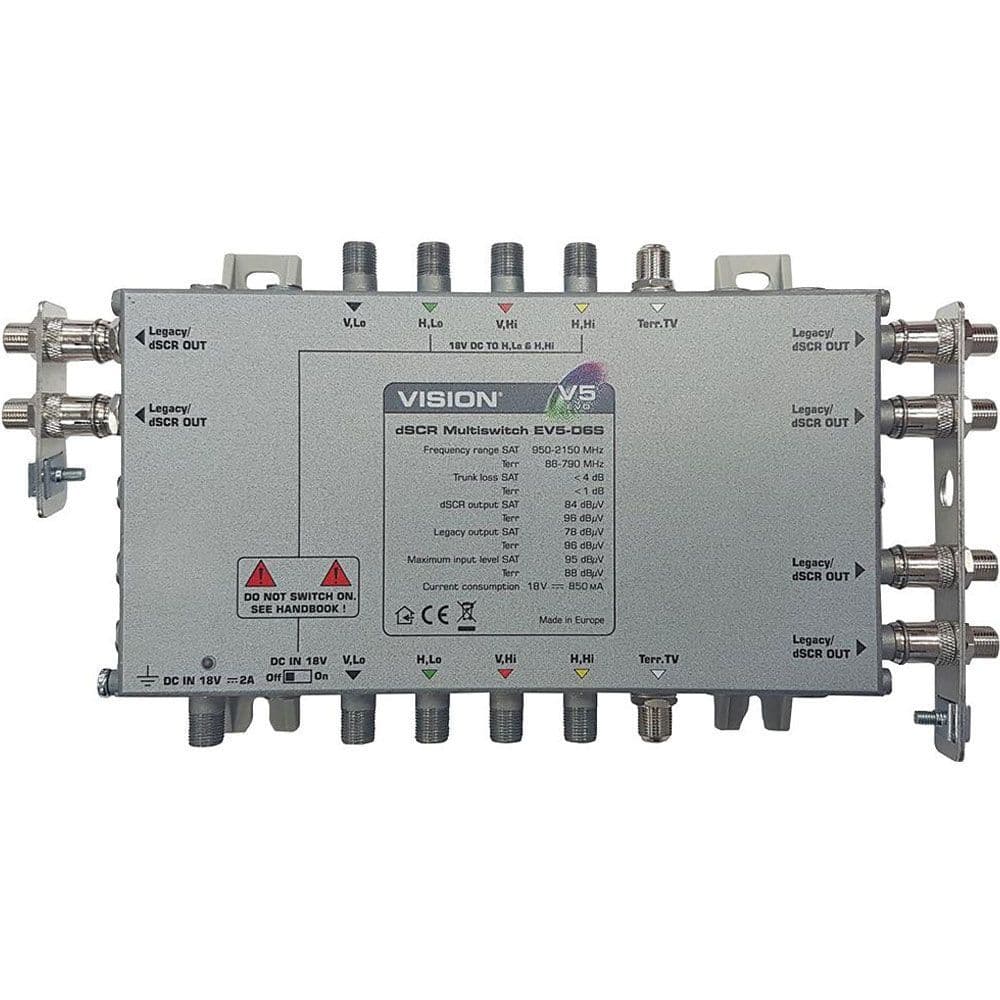

Vision 5x6 dSCR Multiswitch (122831)

5 x 6 dSCR (Sky Q) Switch - Add to IRS or Stand Alone. Line Powered.

Vision IRS switches have been the UK market leader for more than a decade, proving to be exceptionally reliable and versatile. Often copied but never equalled, the features are extensive, the power consumption low, noise low and interconnectivity completely flexible. Availed with Sky Q and Sky+ commutability, even the oldest installations can support our new Sky Q adapters, keeping your investment future proof. These products include factory fitted earth bars, stepped high gain outputs for multiple drop cable lengths up to 50m, variable gain control, power from anywhere - even no landlord supply installations. Colour coded, screened and filtered for interference rejection, these products represent excellent value for money. Free system design service included.

Features

• 5 input – 5 output cascaded trunk line
• Ideal for insertion into any existing 5-wire IRS trunk
• Control according to EN 50494/EN 50607/ SKY UK
• Suitable for Sky Q™, SCR Unicable or Legacy mode
• Automatic Gain Control of satellite signal level on all outputs
• Active Terrestrial
• Very low through loss
• Pre-mounted Earth bars
• 4 x DC modes for convenient DC powering options
  1. Receiver Subscriber Power
  2. Auxiliary DC input
  3. DC power to the trunk
  4. DC power from the trunk

Technical Specifications

• Frequency Range:
  • SAT: 950MHz - 2150MHz
  • TERR: 5 - 790MHz
• Number of Cascade Inputs / Outputs: 4 SAT + 1 Terr.
• Number of dSCR / Legacy outputs: 6
• Number of SAT user bands: 16 per output
• Input level SAT (AGC): 60 - 95dBµV
• Input level Terr (max) (IMD-35): 95dBµV (98dBµV de-rated)
• Output at dSCR mode with DTT: SAT 84dBµV (AGC) Terr 103dBµV (97dBµV de-rated*) max
• Output Legacy mode: SAT 78dBµV Terr 103dBµV (97dBµV de-rated*) max
• Gain SAT / Terr: SAT AGC - Terr +8dB TYP
• Trunk Loss SAT / Terr: <-3dB / +1dB
• SAT IF / SAT IF Isolation: >30dB
• SAT IF Input - Output: >30dB
• SAT IF / Terr: >25dB
• DC Consumption from DC Input or H Lines: 18V 850mA
• DC Consumption Terr TV amplifier via H lines: 15 - 18V 70mA
• DC Consumption from STB in legacy mode: 13V 220mA : 18V 190mA
• DC Consumption from STB in dSCR mode: 14V 320mA for 16 User Bands
• DC Consumption legacy + dSCR mode: 18V 260mA for 16 User Bands
• Max DC Pass into the trunk: 18V 2.0A
• DC Power Supply: Use EV5-034 121556
• Operating Temperature: -200C to +500C
• Dimension inc connectors / Weight: 226 (L) x 133 (W) x 30mm (D) 830g

* Note: De-rated figures are the maximum input and output levels for a full compliment of level DTT Muxes.
