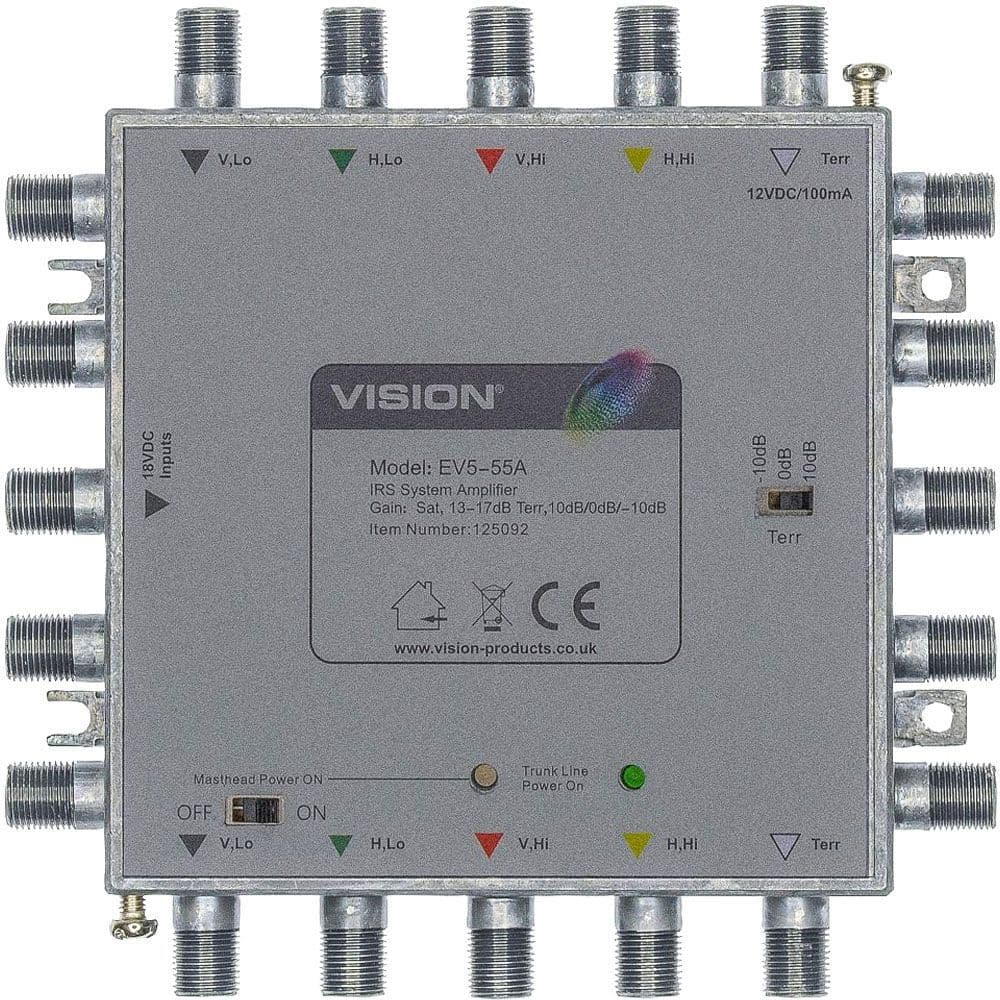

The EV5-55A IRS amplifier is designed for small to medium sized systems. The amplifier has 15dB fixed satellite gain with 3dB built in slope and switchable terrestrial gain from -10.0 or +10dB which allows high off air signals to be attenuated.
Features
- Satellite gain 17dB fixed with 3dB slope
- Masthead line powering 100mA with short circuit protection with dual colour LED Green/Red
- -10, 0, +10dB switched Terrestrial Gain
- Through Current 1 Amp per leg (maximum 2.0A)
- Direct connection 18VDC powering or line powered via horizontal trunk lines
- 180mA max current consumption
- Fully screened housing to reject interference
Technical Specifications
- Frequency Range:
- SAT: 950MHz - 2200MHz
- TERR: 88 - 694MHz
- Number of Inputs / Outputs: 5/5
- Satellite Gain: 13-17dB fixed with 3dB slope
- Terrestrial Gain: -10/0/+10dB
- Maximum Input IMD-35 Satellite: 93dBµV (81dBµV de-rated)
- Maximum Input IMD-35 Terrestrial: 93dBµV (87dBµV de-rated)
- Maximum Output IMD-35 Satellite: 108dBµV (93dBµV de-rated)
- Maximum Output IMD-35 Terrestrial: 105dBµV (99dBµV de-rated)
- SAT IF / SAT IF Input Isolation: >30dB
- SAT IF / Terr Input Isolation: >30dB
- SAT IF Output - SAT Output Isolation: >30dB
- Terr / Terr- Output Isolation: >30dB
- Return Loss All ports: >10dB
- Noise Figure typ.: <6dB
- DC Consumption Terr TV amplifier via H lines: 18VDC 180mA with Green LED Indication
- Impedance: 75Ω
- Connectors: F-Type (f) Earth Bar F-Type (f) Quick F (m)
- Max DC Pass into the trunk: 18V 1.0A per leg (2A combined)
- Operating Temperature: -200C to +500C
- Dimension inc connectors / Weight: 134 x 134x 30 mm / 472 g
