Vision Trunk Power Hub for dSCR Systems (124412)

Not yet reviewed
Product Code: EV5-1855
Information

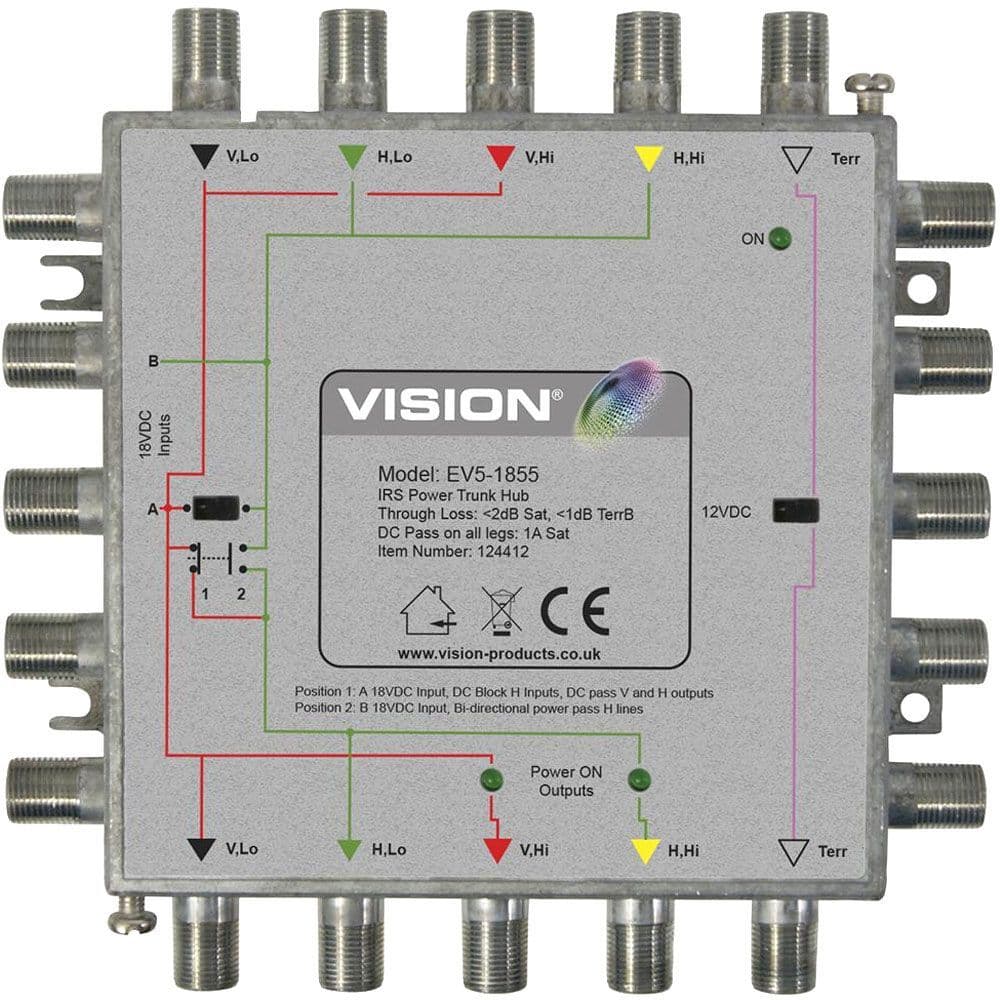

The EV5-1855 IRS Trunk Power Hub is designed to used as power injector where the system requires additional current to supply additional switches in the system. The Trunk Power Hub provides a means of injecting 18VDC In two directions with DC isolation to prevent the two power supplies conflicting with each other.

Features

  • Connect EV5-034 to input B, Switch in position 2 allows voltage to pass up and down the system on the Horizontal trunk lines.
  • Connect EV5-034 to input B, switch in position 1 or 2 switch
  • Terrestrial line power on and bi-directional power on terrestrial trunk.
  • Connect EV5-034 to input A and switch in position 1: allows voltage on all 4 trunk lines down only.
  • Connect EV5-034 to input A and switch in position 2: allows voltage on V,Lo & V,Hi trunk lines down only.
  • LED Power Indicator Green ON
  • Short Circuit Protected LED turns RED auto reset
  • Colour coded inputs / outputs
  • Insertion Loss Sat / Terr <1.5dB
  • Through Current 2 Amp
  • Fully screened die-cast housing to reject interference
  • 75 Ohm Impedance

Technical Specifications

  • Frequency Range SAT/TERR: 88MHz – 2200MHz
  • Number of Inputs / Subscriber Outputs: 8/8+DC 18V output
  • Insertion Loss SAT / Terr TV: <-1.5dB
  • Isolation between Ports: >30dB
  • Return Loss All ports: >12dB
  • Power ON: GREEN LED ON / RED Short circuit Protection with Auto reset
  • Impedance: 75Ω
  • Connectors: F-Type (f) Earth Bar F-Type (f) Quick F (m)
  • Max DC Pass into the trunk: 18VDC 2.0A
  • Operating Temperature: -200C to +500C
  • Dimension inc connectors / Weight: 134 x 134x 30mm 472g
Specifications
  • Brand:
    Vision
  • Product Code:
    EV5-1855
  • Weight:
    0.472kg
Product Code: EV5-1855
