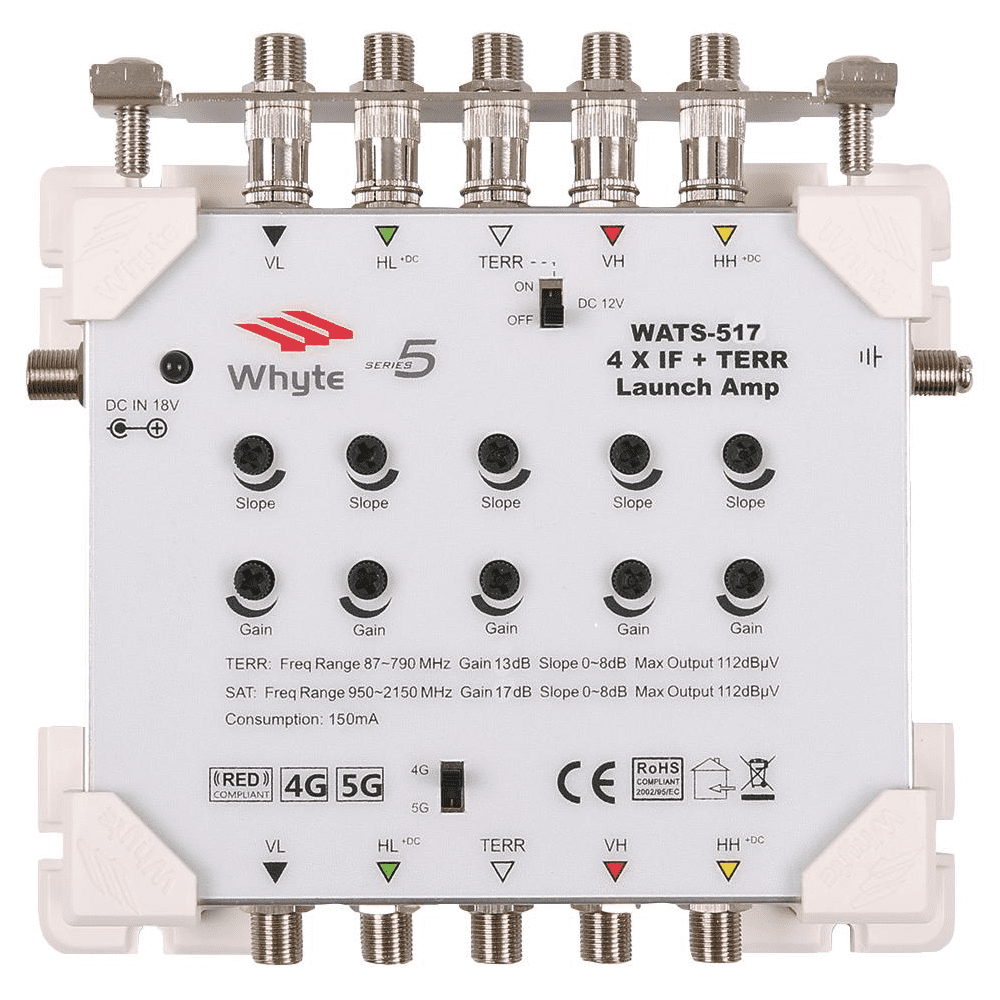

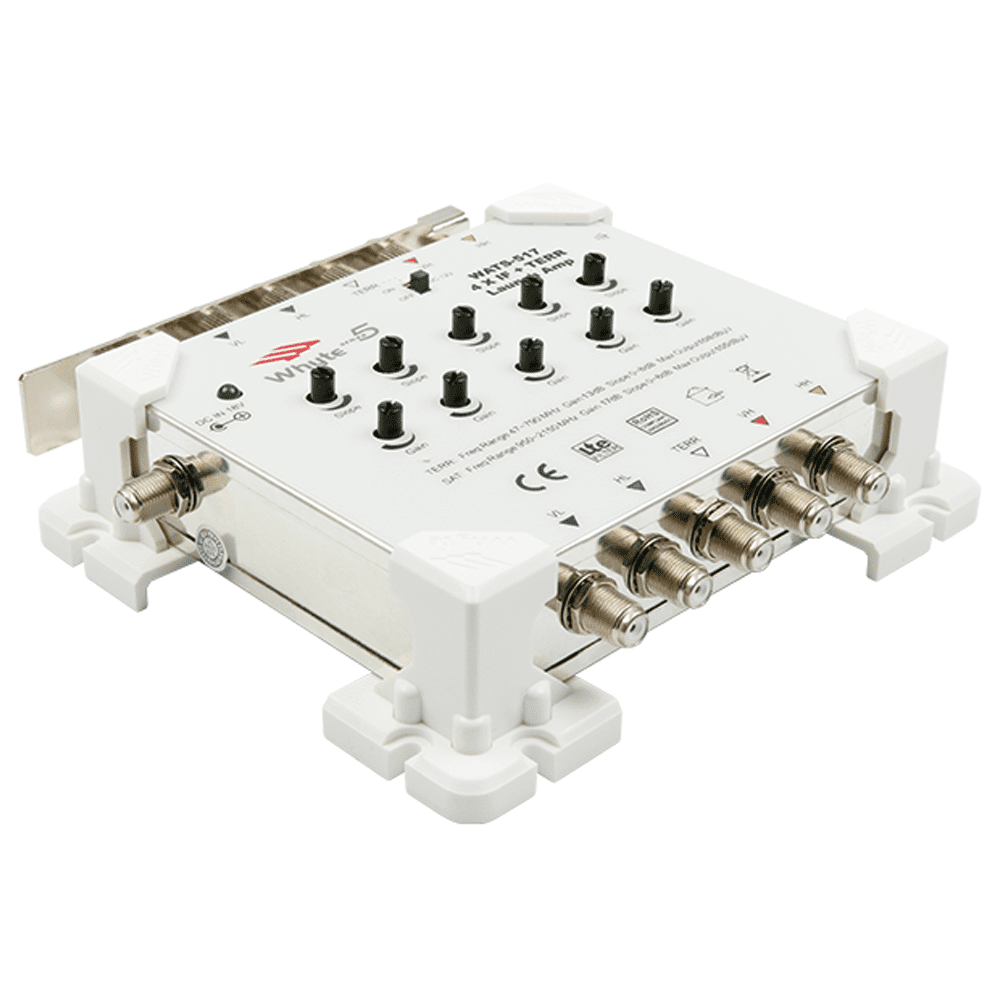

Whyte Series 5 Launch Amplifiers are compact and powerful and may be utilised as Launch Amplifiers or Line Amplifiers. They can be powered directly via the 18V Auxiliary Input or line powered via the HH and HL trunk lines.
Features
- SAT GAIN 17dB / TERR GAIN 13dB
- Comes with input earth bar
- Gain control on all inputs
- Slope control to all inputs
- Switchable 12V DC Supply to Terrestrial Input
- LTE Filter rejects 4G interference
- Colour coded inputs and outputs
- 18V Auxiliary Input injects power to the HL & HH trunk lines
Technical Specifications
- Weight: 0.460 kg
- Dimensions: 15.6 x 15.5 43 cm
- Frequency: Satellite: 950-2150MHz, Terrestrial 47-790MHz
- Inputs (F-Type Connector): 4 SAT + 1 TERR
- Outputs (F-Type Connector): 4 SAT + 1 TERR
- Gain: Tap SAT 17±2dB, Tap TERR 13+-2dB
- Gain Control: SAT : 10+-2dB, TERR : 10+2dB
- Slope Control: SAT : 8+-2 TERR: 8+-2
- Maximum Output Level: SAT : 105dB, TERR: 108dB
- Trunk Max Current Pass (per line): 2A
- TERR 12V DC Supply (switchable): 100mA MAX
- Current Consumption: 150mA max
